Zhuhai King Magnetics Technology Co., Ltd. an ISO9001 IATF16949 certificated company, which is a proffesional designer and manufacturer of high quality nanocrystalline cores, amorphous cores and
10 Years
| Ask Lasest Price | |
| Brand Name : | King Magnetics |
| Model Number : | Hall-sensor nano crystalline strip wound amorphous toroid core with gap |
| Certification : | RoHS |
| Payment Terms : | T/T |
| Supply Ability : | 50000 |
| Delivery Time : | 15 days |
| Price : | - |
Features
Material: Fe-based amorphous core
Saturation flux density induction: 1.56T
Curie temperature(℃): 410
Stacking factor: >0.8
Saturation magnetostriction(*10^-6): <30
Resistivity (μΩ.cm): 110
Ribbon thickness: 25μm

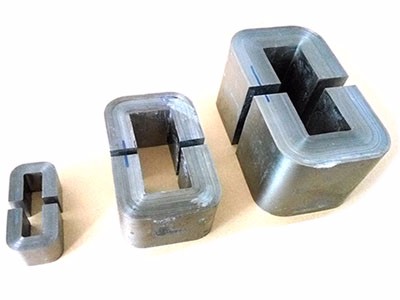

Core shape: C core
Applications
>> Solar inverter filter
>> PFC choke
>> Midium frequency transformer
>> Diffrental mode choke
>> Output filter
>> Audio transformer
Standard core dimensions
| Part No. | Core dimensions | Effictive cross section | Mean path length | Weight | |||||
| A | B | C | D | E | F | AFe | lFe | mFe | |
| mm | mm | mm | mm | mm | mm | cm2 | cm | g | |
| KMAC-20 | 11 | 13 | 50 | 30 | 35 | 72 | 15.7 | 2.94 | 331 |
| KMAC-32 | 13 | 15 | 56 | 30 | 41 | 82 | 17.9 | 3.47 | 447 |
| KMAC-40 | 13 | 15 | 56 | 35 | 41 | 82 | 17.9 | 4.05 | 522 |
| KMAC-50 | 16 | 20 | 70 | 25 | 52 | 102 | 22.7 | 3.56 | 580 |
| KMAC-63 | 16 | 20 | 70 | 30 | 52 | 102 | 22.7 | 4.27 | 696 |
| KMAC-80 | 16 | 20 | 70 | 40 | 52 | 102 | 22.7 | 5.70 | 928 |
| KMAC-100 | 16 | 20 | 70 | 45 | 52 | 102 | 22.7 | 6.41 | 1043 |
| KMAC-125 | 19 | 25 | 83 | 35 | 63 | 121 | 27.2 | 5.92 | 1157 |
| KMAC-160 | 19 | 25 | 83 | 40 | 63 | 121 | 27.2 | 6.76 | 1322 |
| KMAC-200 | 19 | 25 | 83 | 50 | 63 | 121 | 27.2 | 8.46 | 1653 |
| KMAC-250 | 19 | 25 | 90 | 60 | 63 | 128 | 28.6 | 10.15 | 2085 |
| KMAC-320 | 22 | 35 | 85 | 50 | 79 | 129 | 30.6 | 9.79 | 2148 |
| KMAC-400 | 22 | 35 | 85 | 65 | 79 | 129 | 30.6 | 12.73 | 2793 |
| KMAC-500 | 25 | 40 | 85 | 55 | 90 | 135 | 32.5 | 12.24 | 2856 |
| KMAC-630 | 25 | 40 | 85 | 70 | 90 | 135 | 32.5 | 15.58 | 3635 |
| KMAC-800A | 25 | 40 | 85 | 85 | 90 | 135 | 32.5 | 18.91 | 4414 |
| KMAC-800B | 30 | 40 | 95 | 85 | 100 | 155 | 36.1 | 22.70 | 5879 |
| KMAC-1000 | 33 | 40 | 105 | 85 | 106 | 171 | 39.0 | 24.96 | 6994 |
Other specifications are available according to customer’s
requirements.
Our Service:

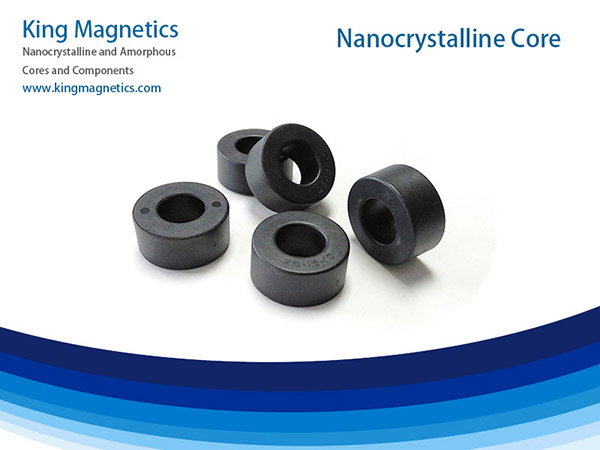

1. Nanocrystalline cores for common mode chokes

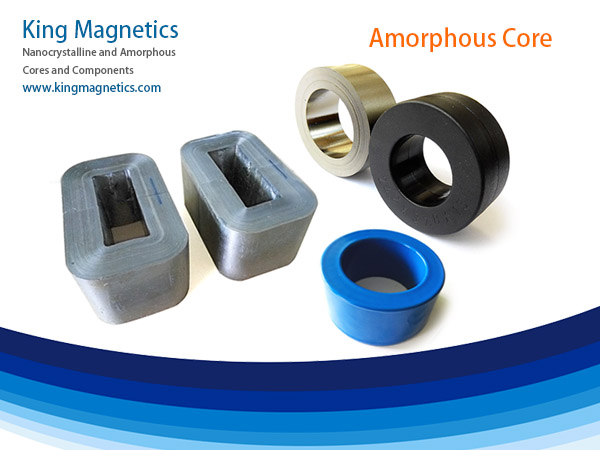

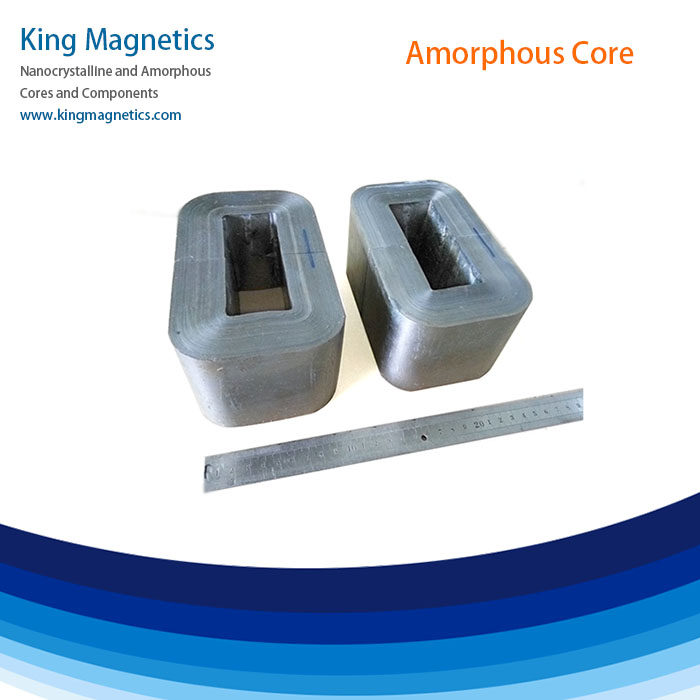

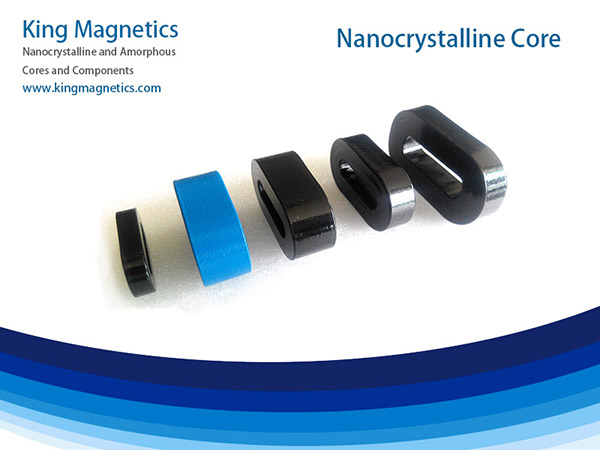

2. Amorphous and nanocrystalline c cores

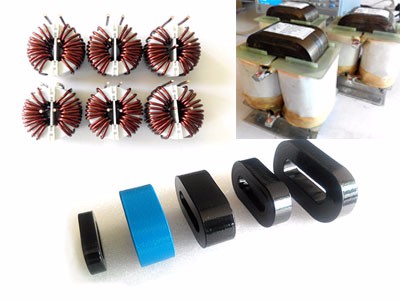

3. Custom cores and magnetic components
More information please visit: www.kingmagnetics.com
FAQ:
1. Are you manufacturer of amorphous and nanocrystalline cores?
Yes, we are manufacturer and we provide high quality products.
2. Can you custom made cores?
Yes, please send us your drawing and specification.
3. MOQ
Our MOQ is USD1000, small order is welcome.
4. Lead time
Mostly lead time begins from 15 days, depends on order quantity.
5. How to start order?
Just fill you requirement message and click "[send]" below, we will contact you in 24Hours.
Or email to us core(at)kingmagnetics.com
