Thanks for the development of amorphous and nanocrystalline
technology, which is a very important technology in modem magnetic
materials, cores and inductive components. King Magnetics has
developed series of nanocrystalline cores for common mode chokes.
Nanocrystalline cores have very high permeability over low
frequency to high frequency up to 30Mhz. They are very suitable for
common mode choke to used as EMC filter to compress conducted
common mode noise. Compared to traditional ferrite core,
nanocrystalline core has a lot of advantages as high inductance,
good filter effective, small size and volume, lower turns of copper
wire, lower power consumption and high efficiency.
Nanocrystalline cores have high curie temperature about 560℃, much
higher than traditional ferrite core about 200℃. High curie
temperature make nanocrystalline core excellent thermal stability,
and can continuous working at up to 120℃ environment.
Nanocrystalline cores is the best choice for application of common
mode choke.
Material: Fe-based Nanocrystalline core
Saturation flux density induction: 1.25T
Permeability @ 10KHz: > 50000
Permeability @ 100KHz: >10500
Curie temperature(℃): 560
Stacking factor: 0.78
Saturation magnetostriction(*10^-6): <2
Resistivity (μΩ.cm): 115
Ribbon thickness: 25μm
Core shapes: Troidal core
>> EMC Filter
>> Switched mode power supply
>> Computer power supply
>> Communication and network power supply
>> Laser and X-ray power supply
>> Welding equipment and Electrical plating power supply
>> Solar energy equipment and Wind power generator
>> Household electrical appliance
>> Uninterruptable power supply (UPS)
>> Frequency converter
>> Inducted heating equipment
>> high-speed railway power supplies

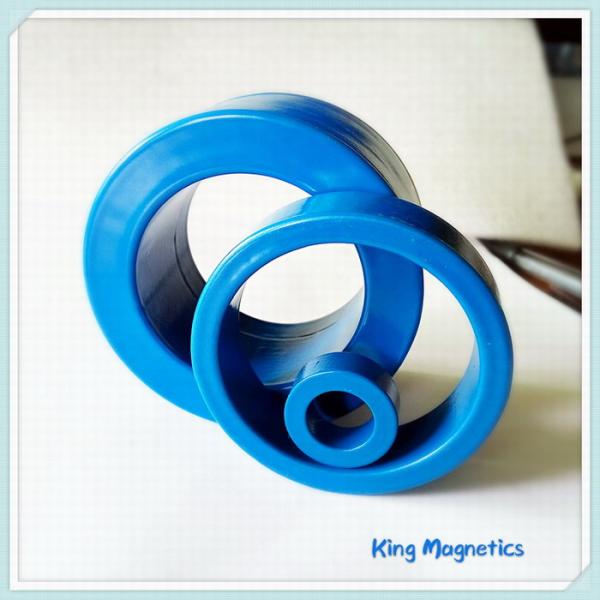

Price list nanocrystalline core for EMI filter common mode choke coil inductor supplied by King Magnetics
| Part No. | Core dimensions | Case dimensions | Effictive cross section | Mean path length | Weight | AL Minimum Value | |||||
| od | id | h | OD | ID | H | AFe | lFe | mFe | 10kHz | 100kHz | |
| mm | mm | mm | mm | mm | mm | cm2 | cm | g | μH | μH | |
| KMN986545 | 9.8 | 6.5 | 4.5 | 11.3 | 5 | 6.1 | 0.06 | 2.6 | 1.1 | 14.2 | 3.0 |
| KMN120805 | 12 | 8 | 4.5 | 14.5 | 6.3 | 6.9 | 0.07 | 3.1 | 1.6 | 15.6 | 3.7 |
| KMN161008 | 16 | 10 | 8 | 17.8 | 8.4 | 9.9 | 0.19 | 4.1 | 5.5 | 34.6 | 6.9 |
| KMN191510 | 19 | 15 | 10 | 21.2 | 13.5 | 12.3 | 0.16 | 5.3 | 6.0 | 22.0 | 4.4 |
| KMN201208 | 20 | 12 | 8 | 21.7 | 10.8 | 9.9 | 0.25 | 5.0 | 9.1 | 37.4 | 7.5 |
| KMN211308E * | 21.3 | 13.6 | 8 | 22 | 13 | 8.8 | 0.24 | 5.5 | 9.5 | 33.0 | 6.6 |
| KMN252010 | 25 | 20 | 10 | 28 | 17.2 | 13.2 | 0.20 | 7.1 | 10 | 20.8 | 4.2 |
| KMN261610 | 26 | 16 | 10 | 28.3 | 14 | 12.8 | 0.39 | 6.6 | 19 | 44.6 | 8.9 |
| KMN302010 | 30 | 20 | 10 | 33.2 | 17.8 | 13.3 | 0.39 | 7.9 | 22 | 37.4 | 7.5 |
| KMN302015 | 30 | 20 | 15 | 33.6 | 17.8 | 17.8 | 0.59 | 7.9 | 33 | 56.2 | 11.2 |
| KMN322010 | 32 | 20 | 10 | 34.4 | 18.1 | 13 | 0.47 | 8.2 | 28 | 43.2 | 8.6 |
| KMN322015 | 32 | 20 | 15 | 34.6 | 17.9 | 18.2 | 0.70 | 8.2 | 42 | 64.8 | 13.0 |
| KMN402515 | 40 | 25 | 15 | 44.4 | 22 | 18.8 | 0.88 | 10.2 | 65 | 64.8 | 13.0 |
| KMN403215 | 40 | 32 | 15 | 44.9 | 28.8 | 18.8 | 0.47 | 11.3 | 38 | 31.2 | 6.2 |
| KMN503220 | 50 | 32 | 20 | 53.8 | 28.5 | 24 | 1.40 | 12.9 | 131 | 68.5 | 16.4 |
| KMN504020 | 50 | 40 | 20 | 53.6 | 37.1 | 23 | 0.78 | 14.1 | 80 | 34.7 | 8.3 |
| KMN644025 | 64 | 40 | 25 | 67.4 | 37 | 29.3 | 2.34 | 16.3 | 277 | 90.0 | 21.6 |
| KMN805025 | 80 | 50 | 25 | 83.5 | 47.2 | 28.8 | 2.93 | 20.4 | 433 | 90.0 | 21.6 |
| KMN1008020 | 100 | 80 | 20 | 105 | 75 | 25 | 1.56 | 28.3 | 320 | 34.7 | 8.3 |
| KMN1027625 | 102 | 76 | 25 | 107 | 71 | 30 | 2.54 | 27.9 | 514 | 57.0 | 13.7 |
| KMN1309030 | 130 | 90 | 30 | 135 | 85 | 35 | 4.68 | 34.5 | 1172 | 85.1 | 20.4 |
| KMN16013025 | 160 | 130 | 25 | 165 | 125 | 30 | 2.93 | 45.5 | 966 | 40.3 | 9.7 |
| KMN17012025 | 170 | 120 | 25 | 175 | 115 | 30 | 4.88 | 45.5 | 1609 | 67.2 | 16.1 |
* Epoxy coated.
These cores are our standard products, we can also design and produce high performance cores according to customer’s requirements, including sizes, inductance and applications. We can help customers to select the best performance cores.
|
|
